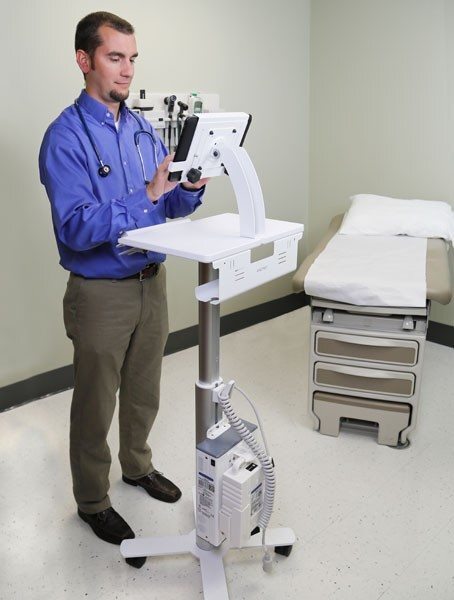

ErgoTron StyleView Tablet Cart

ErgoTron StyleView Tablet Cart


This lightweight cart for tablets will easily fit into your workflow with its ultra small footprint.


Height adjustable yet small, simple and lightweight

Fifteen inches (38 cm) of vertical travel for seated and standing use

Sturdy and safe metal construction

Smooth, easily cleanable surfaces

Integrated hand-brake secures platform height to provide an ultra-stable worksurface

Tilt the tablet to your preferred input position—work with screen angled vertically, horizontally or anywhere in between

Choose the level of security that is right for your tablet

The worksurface provides a convenient platform for a keyboard

The t-slot channel interface on the cart’s column allows integration of accessories to customize a solution that’s right for your application.

In stock

Screen: ≤ 12"§

Capacity: 2.5 lbs*1.1 kg

Lift: 15"‡38 cm

Tilt: 128°

Part Number: SV10-1400-0

Description: StyleView Tablet Cart, SV10, non-powered (white and aluminum)

TAA (Trade Agreements Act) compliant

Includes worksurface, cable/brick storage compartment, storage hook, 3" (75 mm) casters (2 locking), tablet riser with tilting tablet mount assembly, scanner holder

Choose the level of security that is right for your tablet. This cart ships with three options: Hard-mount your tablet case directly to the VESA mount at the top of the riser if case includes VESA hole pattern; or add the easel bracket to the VESA mount and place your tablet on its surface; add the top grip to the easel bracket to clamp the tablet for extra stability when moving the cart. VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)

Tablet can be installed in either landscape or portrait mode

When installing tablet using easel bracket, tablet must fit within these dimensions: maximum outside width = 12.25" (31 cm); minimum outside height = 6.5" (16.5 cm); maximum outside height = 9.5" (24 cm)

Weight Capacity: tablet ≤ 2.5 lbs (1.1 kg); cable management storage ≤ 2 lbs (1 kg); column ≤ 20 lbs (9.1 kg), including accessories added to t-slot channel interface and storage hook

Minimum worksurface height: 33" (84 cm); maximum worksurface height = 48" (122 cm)

Tested to UL/EN/IEC and FCC Part 15 Class A specifications for enhanced patient safety

Worksurface Dimensions: 18" x 12.5" (45.7 x 31.8 cm)

Cable management storage area beneath worksurface for power brick and excess cable or power strip: 14.5" x 2.75" (36.8 x 7 cm)

Scanner holder included; attaches beneath worksurface on the left side only

Base Footprint Dimensions: 19" x 19" (48.3 x 48.3 cm)

Powder-coat paint finish on steel surfaces

Cart Weight: 33 lbs (15 kg)

Shipping Dimensions: 40" x 23.5" x 23.5" (102 x 60 x 60 cm)

Shipping Weight: 51 lbs (23 kg)

Warranty: Seven (7) years
