Benefits:

  • Position LCD screens for maximum ergonomic comfort with unparalleled range of motion—promotes wellness in any work area
  • Free up your desktop to increase your workspace
  • 13-inch (33 cm) height range meets the ergonomic needs of more than nine out of ten adults
  • Extends LCDs out up to 25" (64 cm) with an extension range of 18" (46 cm); push your displays out of the way when not in use
  • Easily turn one or both screens from landscape mode to portrait mode—view entire pages without scrolling
  • Cable management feature routes cables under the arm, out of the way
  • Easy to use—simple installation and effortless operation
  • Passes Ergotron’s 10,000-cycle motion test, which ensures years of trouble-free height adjustment
  • Patented Constant Force™ lift-and-pivot motion technology

Tech Specs:

  • Screen: ≤ 27"†
  • Capacity: 40 lbs*18 kg
  • Lift: 13"33 cm
  • Tilt: 75°
  • Pan: 360°
  • Rotation: 360°
  • VESA: MIS-D
  • Part Number: 45-245-026

Description:

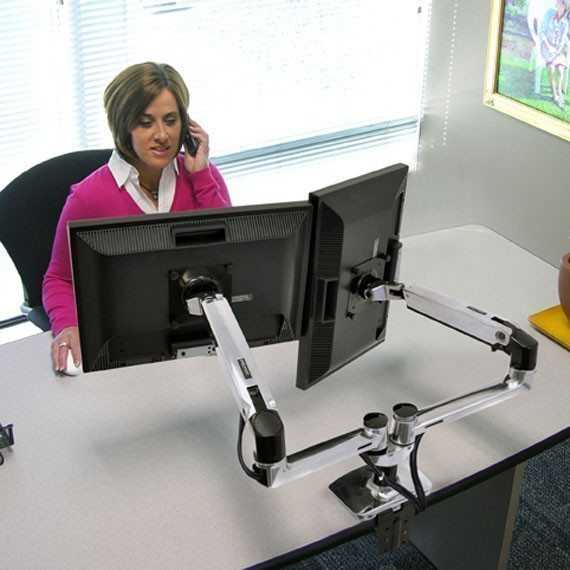

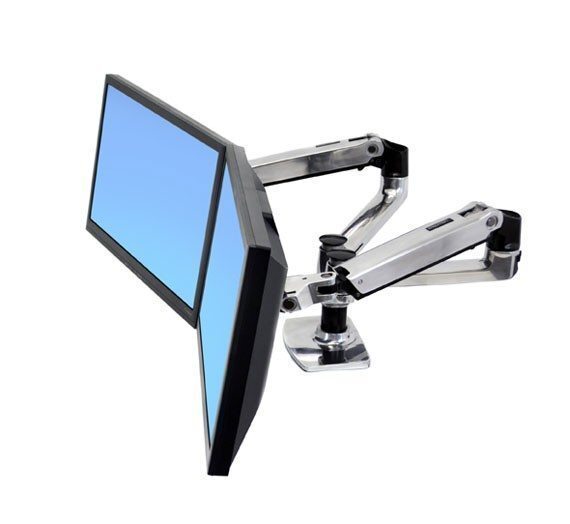

  • LX Dual Monitor Arm, Side-by-Side (polished aluminum)
  • Includes two (2) LCD arms and extensions, pole, t-bracket, desk clamp and grommet mount
  • Can be configured to hold a laptop instead of an LCD display; also order the LX Notebook Tray (50-193-200)

Quality Tested:

  • 10,000-cycle test applied to lift mechanism, ensuring years of trouble-free height adjustment
  • Improved LX Arm Features & Benefits
  • Steel and polished aluminum construction offers greater durability and enhanced aesthetics
  • Snap-fit cap secures interface of arms to extensions for greater stability
  • Larger displays (e.g. 23" to 27" screen sizes) cannot be positioned in a stacked orientation; larger displays can only be placed side by side
  • Weight Capacity: Individual monitor weight = 5–20 lbs (2.3–9.1 kg); maximum combined weight = 40 lbs (18.1 kg)
  • Mounting Standards: VESA FDMI MIS-D, 100/75, C (hole pattern: 100 x 100 mm & 75 x 75 mm)
  • Desk clamp attaches to edge up to 2.6" (66 mm) thick; grommet mount attaches through hole 5/16" to 2" (7–51 mm) wide and up to 3" (80 mm) thick
  • Product Weight: 13.9 lbs (6.3 kg)
  • Shipping Dimensions: 19.25" x 17.75" x 6.25" (49 x 45 x 16 cm)
  • Shipping Weight: 17.3 lbs (7.9 kg)
  • Warranty: Ten (10) years

(45-245-026)

SKU 45-245-026
