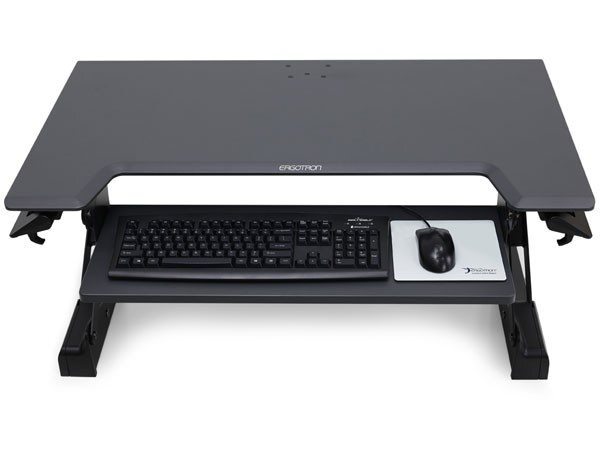

Ergotron WorkFit-TL Overview

The Ergotron WorkFit-TL moves straight up and down with the handles at the front of the unit. No reaching or bending over is required, meaning back strain is greatly reduced. It also features a strong lift-assist mechanism, putting it a class above its competitors.

WorkFit-TL saves space because it moves straight up and down, remaining within the footprint of your desktop. The platform is extremely stable throughout its range of motion—you can freely lean on it while working without worry of tip or height-drop. Add an optional monitor mount if you want your VESA-compatible monitor to sit on a mount.

Key Features & Benefits

• Larger keyboard tray, wider worksurface, and higher weight capacity.
• Attach display(s) with an accessory riser kit to provide independent screen adjustment while clearing worksurface space.
• Modify an existing office space or cubicle by simply placing on an open tabletop—no expensive professional installers needed.
• Ships fully assembled—sits directly on top of desk with no special mounting or tool adjustments required.
• Provides 15 inches (38 cm) of vertical adjustment.
• Instantly move between sit and stand positions by releasing hand-brake levers on either side. No cranks or motors required.
• Counterbalancing mechanism uses CF™ technology to facilitate quick height adjustment.
• Extremely stable platform that does not protrude beyond the tabletop; works well in corner desk configurations (fits surfaces as shallow as 19" / 48 cm).
• Tested and guaranteed: Full 5-year warranty!

Accessories & Expansion Kits

WorkFit Single LD Monitor Kit

Upgrade your WorkFit to hold an LCD above the desktop. Offers 5" (13 cm) of height adjustment and tilt for unsurpassed ergonomic comfort.

Benefits

• Holds display above worksurface, freeing up space.
• Cost-effective height-adjustable mounting solution.
• Simple installation and effortless operation via patented CF™ motion technology.
• Increases viewing comfort by reducing eye, back, and neck strain.
• Compatible with an accessory Notebook Tray for laptop use.

WorkFit Dual Monitor Kit

Upgrade your WorkFit to hold two LCDs above the desktop with 5" (13 cm) of height adjustment.

Benefits

• Holds displays above worksurface, freeing up space.
• Cost-effective height-adjustable mounting solution.
• Simple installation and effortless operation via patented CF™ motion technology.
• Increases viewing comfort by reducing eye, back, and neck strain.
• Increases productivity and reduces errors (up to 33% fewer errors and 24% increased comfort reported in multi-screen studies**).

Technical Specifications

WorkFit-TL Desktop Workstation

• Screen Size: ≤ 30"
• Weight Capacity: 10–40 lbs (4.5–18 kg)
• Lift Range: 15" (38 cm)
• Footprint: 37.5" x 25" (95 x 64 cm)
• Keyboard Tray Dimensions: 27.5" x 11" (69 x 28 cm)
• Desk Surface Compatibility: Fits surfaces 24" (61 cm) deep or larger
• Product Weight: 56 lbs (25.5 kg)
• Shipping Dimensions: 42" x 33.5" x 8.25" (107 x 85 x 21 cm)
• Shipping Weight: 62 lbs (28.2 kg)
• Part Number: 33-406-085
• Certifications: ANSI/BIFMA compliant for indoor air quality and low VOC emissions
• Warranty: 5 Years

WorkFit Single LD Monitor Kit

• Screen Size: ≤ 24"
• Capacity: 6–16 lbs (2.7–7.3 kg)
• Lift / Tilt / Rotation: 5" (12.7 cm) / 30° / 360°
• VESA Standard: MIS-D (100 x 100 mm & 75 x 75 mm)
• Product Weight: 6.6 lbs (3.6 kg)
• Shipping Weight: 7.9 lbs (3.6 kg)
• Part Number: 97-905
• Warranty: 5 Years

WorkFit Dual Monitor Kit

• Screen Size: ≤ 24" (max display width 24.5" / 62 cm)
• Capacity: 12–28 lbs (5.5–12.7 kg total; 6–14 lbs per mount)
• Lift / Rotation: 5" (12.7 cm) / 360°
• VESA Standard: MIS-D
• Product Weight: 9.7 lbs (4.4 kg)
• Shipping Weight: 11.4 lbs (5.2 kg)
• Part Number: 97-934-085
• Warranty: 5 Years

Don't Forget Your Anti-Fatigue Mat!
